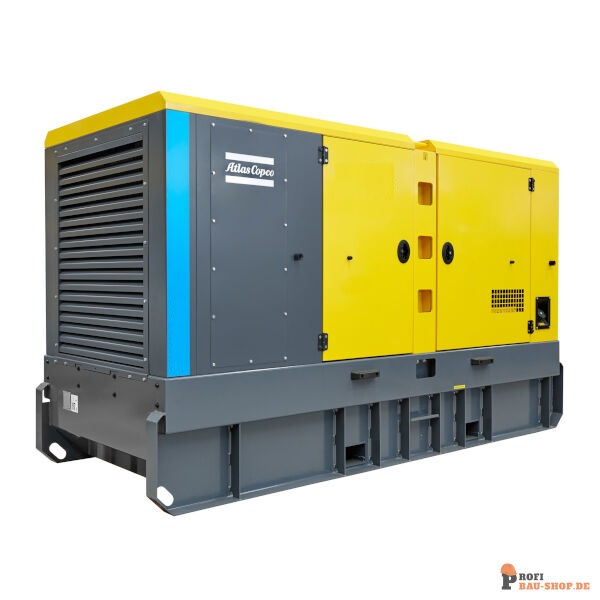

QES 520 CUD
A 531 kVA diesel generator engineered for mining and critical standby power, with a turbocharged Cummins engine and advanced remote monitoring and control.
- Reliable 531 kVA standby diesel generator
- Heavy-duty sound-attenuated, weatherproof steel canopy
- Automatic Voltage Regulator (AVR) for stable and reliable power output
- Electronic engine governor for precise frequency control
- Advanced DSE7320 controller with manual, remote start and AMF capability
- Integrated galvanised forklift pockets and single-point lifting system
- Turbocharged Cummins diesel engine for dependable heavy-duty performance
- Designed for both prime and standby power applications
Thanks for your enquiry. We'll be in touch shortly.
Oops! There was an error with your submission.
Ideal for
- Mining operations
- Industrial facilities
- Critical standby power
- Commercial buildings
- Data centres
- Infrastructure projects
- Equipment hire and rental fleets
Performance Specs
- Frequency: 50 Hz
- Prime Power (PRP): 515 kVA / 412 kW
- Standby Power (ESP): 531 kVA / 425 kW
- Rated Voltage: 400V / 230V (3 Phase)
- Power Factor: 0.8
- Rated Current: 743.0 A
- Operating Temperature: -10°C to +50°C
- Fuel Consumption @ 100% Load: 103.0 L/hr
- Fuel Tank Capacity: 740 L
- Fuel Autonomy @ Full Load: Up to 7 hours
- Noise Level: 75 dB(A) @ 7 m
Technical Specs
- Engine: Cummins QSZ13-G3 Diesel
- Engine Power: 430 kW
- Engine Speed: 1500 rpm
- Aspiration: Turbocharged
- Speed Control: Electronic Governor
- Cylinders: 6
- Cooling System: Water-cooled
- Engine Displacement: 16.1 L
- Alternator: Atlas Copco ACA355C
- Alternator Protection: IP23
- Insulation Class: H
- Controller: Deep Sea DSE7320
- Fuel Tank: 740 L
- Dimensions (L × W × H): 4600 × 1500 × 2350 mm
- Dry Weight: 5,100 kg
