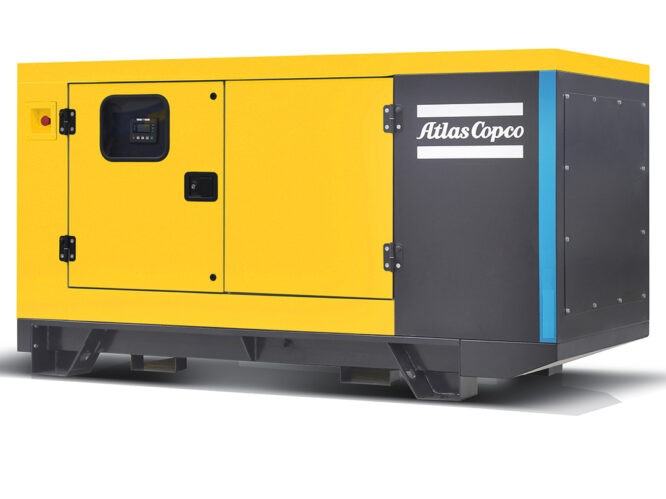

QES 180 CUD
Reliable 194 kVA standby diesel generator
Heavy-duty sound-attenuated, weatherproof steel canopy
Automatic Voltage Regulator (AVR) for stable and consistent power output
Electronic engine governor for precise frequency control
Integrated galvanised forklift slots and central lifting point
Digital DSE7320 controller with manual, remote start and AMF capability
Turbocharged Cummins diesel engine for dependable performance
Designed for both prime and standby power applications
Construction sites
Emergency backup power
Industrial facilities
Residential developments
Telecommunications
Events and temporary power
Equipment hire and rental fleets
Frequency: 50 Hz
Prime Power (PRP): 180 kVA / 144 kW
Standby Power (ESP): 194 kVA / 155 kW
Rated Voltage: 400V / 230V (3 Phase)
Power Factor: 0.8
Rated Current: 259.0 A
Operating Temperature: -10°C to +50°C
Fuel Consumption @ 100% Load: 42.0 L/hr
Fuel Tank Capacity: 520 L (Standard)
Fuel Autonomy @ Full Load: Up to 14 hours (Standard Tank)
Noise Level: 67 dB(A) @ 7 m
Engine: Cummins 6CTA8.3-G2 Diesel
Engine Power: 158 kW
Engine Speed: 1500 rpm
Aspiration: Turbocharged
Speed Control: Electronic Governor
Cylinders: 6
Cooling System: Water-cooled
Engine Displacement: 8.3 L
Alternator: Atlas Copco ACA270F
Alternator Protection: IP23
Insulation Class: H
Controller: Deep Sea DSE7320
Fuel Tank: 520 L
Dimensions (L × W × H): 3410 × 1250 × 2224 mm
Dry Weight: 2,394 kg
