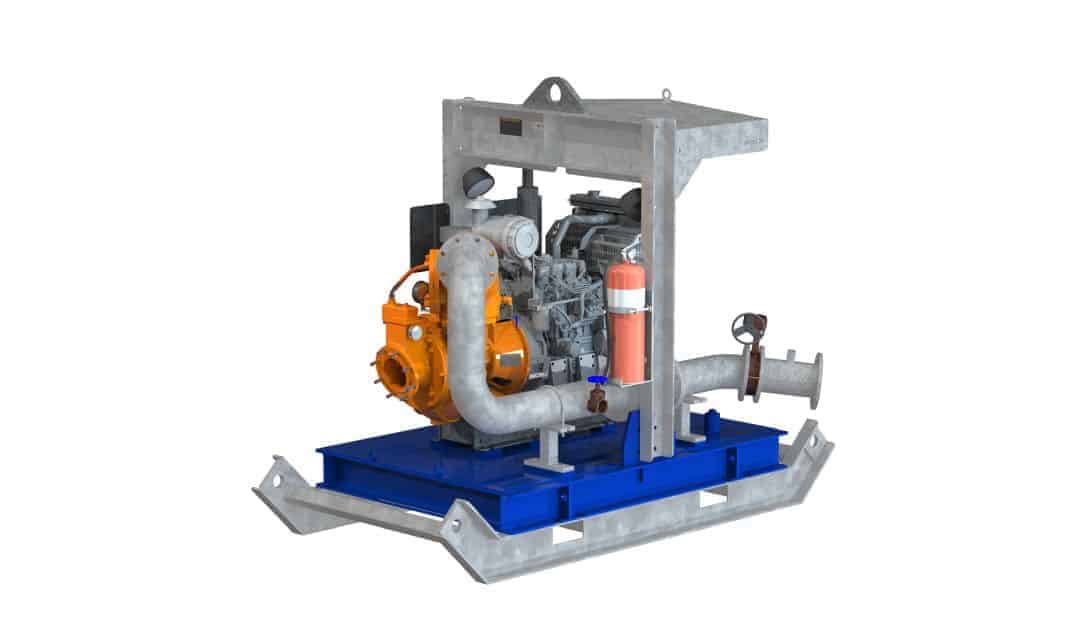

Sykes CP150i
A robust 6" diesel pump for construction, utilities and light mining, delivering up to 173 L/sec with solids handling up to 77 mm and low fuel consumption.
- Automatic self-priming single-stage centrifugal pump delivering up to 173 L/sec
- Handles solids up to 77 mm with a semi-open impeller
- High-capacity dewatering with excellent hydraulic efficiency
- 316 stainless steel wetted internals for superior corrosion resistance
- Heavy-duty structural steel skid with galvanised lifting frame
- Oil-lubricated mechanical seal for extended service life
- Perkins diesel engine delivering reliable performance and fuel efficiency
- Built for demanding construction, wastewater and mining applications
Thanks for your enquiry. We'll be in touch shortly.
Oops! There was an error with your submission.
Ideal for
- Construction site dewatering
- Sewage and wastewater bypass
- Mining and quarry operations
- Industrial pumping
- General water transfer
- Emergency flood response
- Rental fleet applications

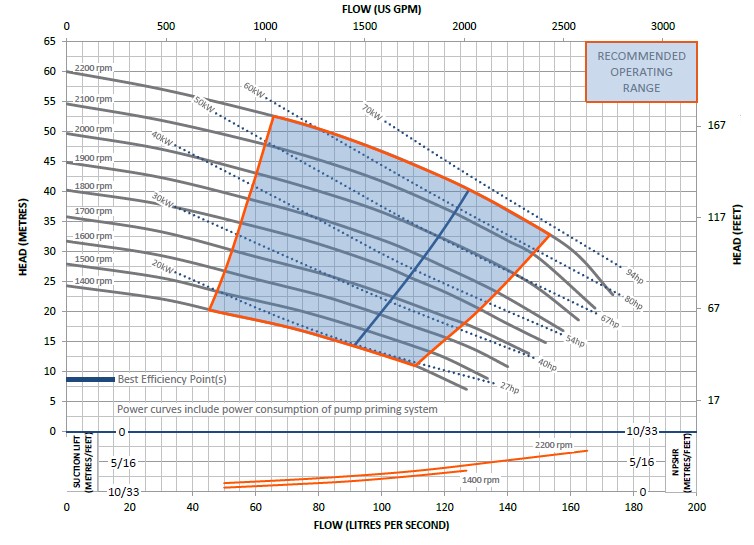

Performance Specs
- Max Flow: 173 L/sec
- Max Head: 60 m
- Solids Handling: 77 mm
- Suction: 150 mm (6")
- Discharge: 150 mm (6")
- Impeller: 2-vane Semi-Open
- Priming: Automatic Self-Priming
Technical Specs
- Engine: Perkins 1104D-44TA Diesel
- Fuel Tank: 550 L
- Fuel Consumption: 12.3 L/hr @ BEP (2,000 rpm)
- Dry Weight: 2,900 kg (Skid)
- Wet Weight: 3,380 kg (Skid)
- Shaft Diameter: 40 mm
- Construction: 316 Stainless Steel (CF8M) Wetted Internals
- Mechanical Seal: Oil-lubricated multi-spring balanced component seal
