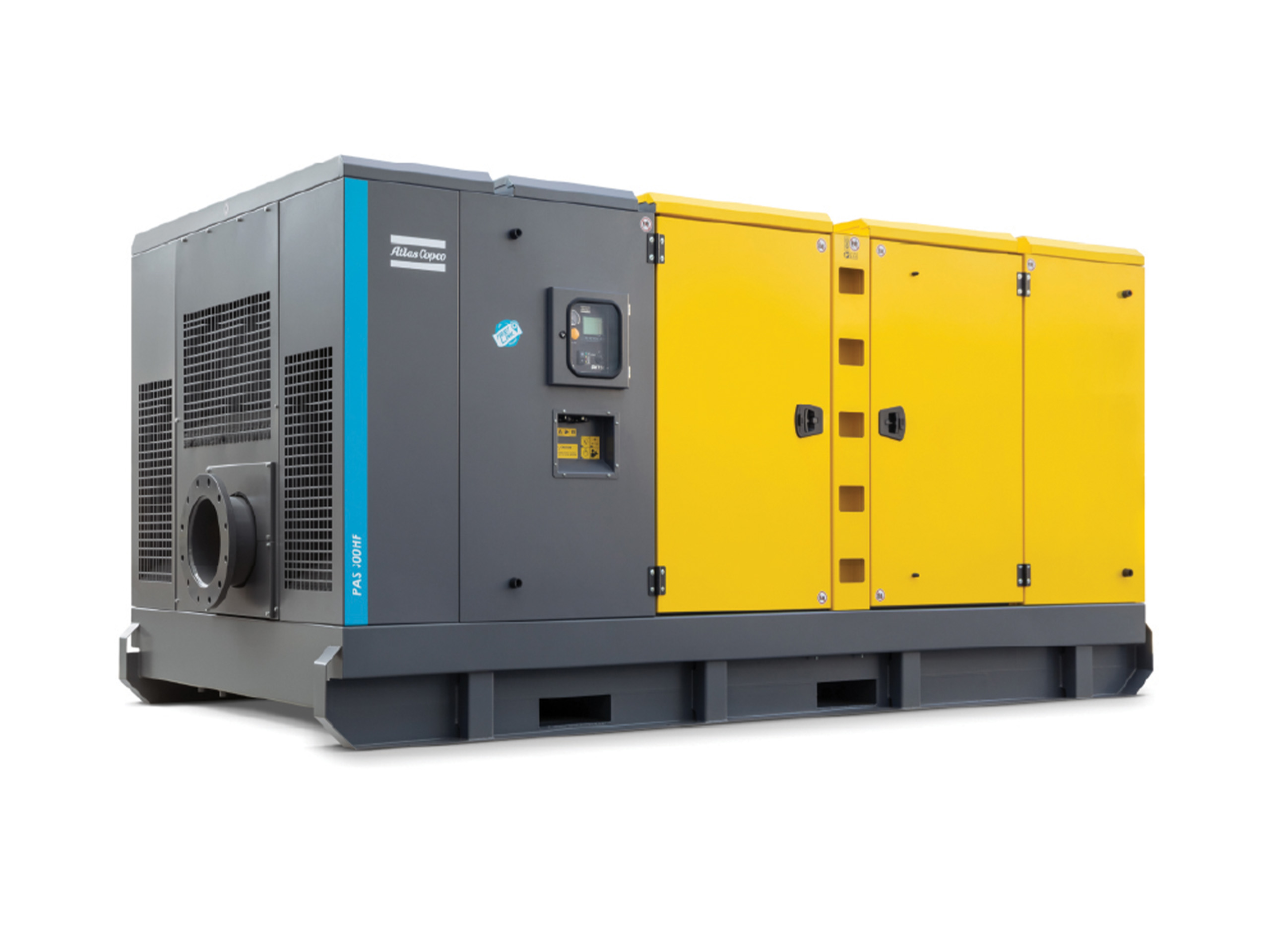

PAS300 HF440
A heavy-duty 12" high-flow pump for large-scale dewatering, moving up to 2,250 m³/h and handling solids up to 89 mm for continuous demanding operation.
- High-flow vacuum-assisted centrifugal pump delivering up to 2,250 m³/h (625 L/sec)
- Automatic self-priming up to 7.5 m suction lift
- Handles solids up to 89 mm with a semi-open impeller
- High hydraulic efficiency of up to 74%
- Oil-free diaphragm vacuum pump for environmentally friendly operation
- Heavy-duty ductile iron construction for abrasive liquids and sandy water
- Heavy-duty mechanical seal in an oil bath for reliable dry running
- Designed for continuous operation in demanding dewatering applications
Thanks for your enquiry. We'll be in touch shortly.
Oops! There was an error with your submission.
Ideal for
- Large-scale construction dewatering
- Mining and quarry operations
- Flood and emergency response
- High-volume water transfer
- Civil infrastructure projects
- Industrial dewatering
- Water diversion and bypass pumping
Performance Specs
- Max Flow: 2,250 m³/h (625 L/sec)
- Max Head: 86 m
- Max Suction Lift: 7.5 m
- Solids Handling: 89 mm
- Pump Efficiency: Up to 74%
- Suction: 300 mm Flanged (DIN 300)
- Discharge: 300 mm Flanged (DIN 300)
Technical Specs
- Engine: Scania DC09 074A Turbo Diesel
- Fuel Tank: 650 L
- Dry Weight: 4,500 kg (Canopy)
- Dimensions (L × W × H): 4000 × 1500 × 2100 mm (Canopy)
- Starting: Electric (24V)
- Emissions: Tier 2
- Control System: PW500 Digital Controller
