PAS 200HF 315
An 8" high-capacity dewatering pump built for rugged mining and construction demands, delivering up to 900 m³/h with solids handling up to 76 mm.
- High-flow vacuum-assisted centrifugal pump delivering up to 900 m³/h (250 L/sec)
- Automatic self-priming up to 7.5 m suction lift
- Handles solids up to 76 mm with a semi-open impeller
- High hydraulic efficiency of up to 80%
- Oil-free diaphragm vacuum pump for environmentally friendly operation
- Heavy-duty ductile iron construction for abrasive and sandy water
- Easy maintenance with hinged inspection cover and replaceable wear plate
Thanks for your enquiry. We'll be in touch shortly.
Oops! There was an error with your submission.
Ideal for
- Construction site dewatering
- Mining and quarry dewatering
- Civil infrastructure projects
- Emergency flood response
- High-volume water transfer
- Wastewater bypass pumping
- General industrial dewatering

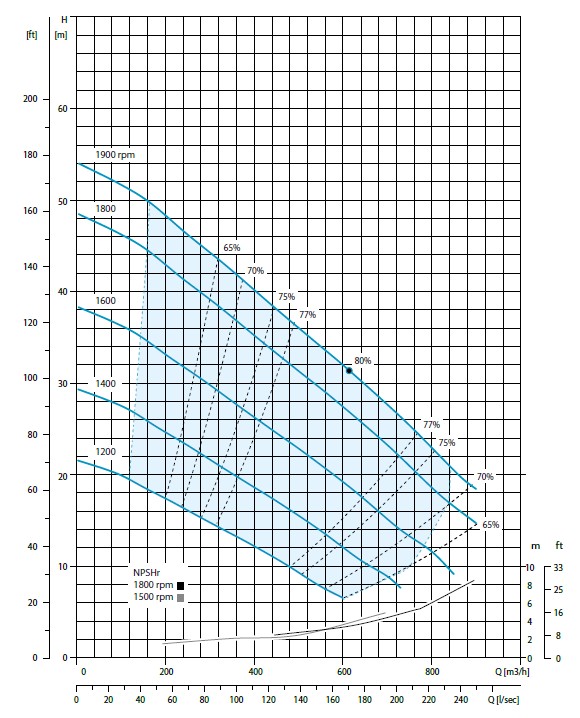

Performance Specs
- Max Flow: 900 m³/h (250 L/sec)
- Max Head: 54 m
- Max Suction Lift: 7.5 m
- Solids Handling: 76 mm
- Pump Efficiency: Up to 80%
- Suction: 200 mm Flanged (DIN 200)
- Discharge: 200 mm Flanged (DIN 200)
Technical Specs
- Engine: Deutz TCD 3.6 L4 Turbo Diesel
- Fuel Tank: 415 L
- Dry Weight: 2,200 kg
- Dimensions (L × W × H): 3220 × 1940 × 2195 mm
- Starting: Electric (24V)
- Emissions: EPA Tier 4 Final / Stage IIIB
- Noise Reduction: Fully enclosed canopy
