PAS 100 HD
A 4" high-pressure dewatering pump built for tough construction and industrial jobs, handling solids up to 76 mm at flows up to 260 m³/h.
- High-performance vacuum-assisted centrifugal pump delivering up to 260 m³/h (72 L/sec)
- Automatic self-priming up to 7.5 m suction lift
- Handles solids up to 76 mm with a semi-open impeller
- High hydraulic efficiency of up to 70%
- Oil-free diaphragm vacuum pump for reliable dry priming
- Heavy-duty cast iron construction for abrasive and sandy water
- Replaceable wear plates for extended service life
- Easy maintenance with HardHat gullwing access doors and hinged inspection cover
Thanks for your enquiry. We'll be in touch shortly.
Oops! There was an error with your submission.
Ideal for
- Construction site dewatering
- Civil infrastructure projects
- General industrial dewatering
- Emergency flood response
- Water transfer applications
- Quarries and mining support
- Temporary bypass pumping

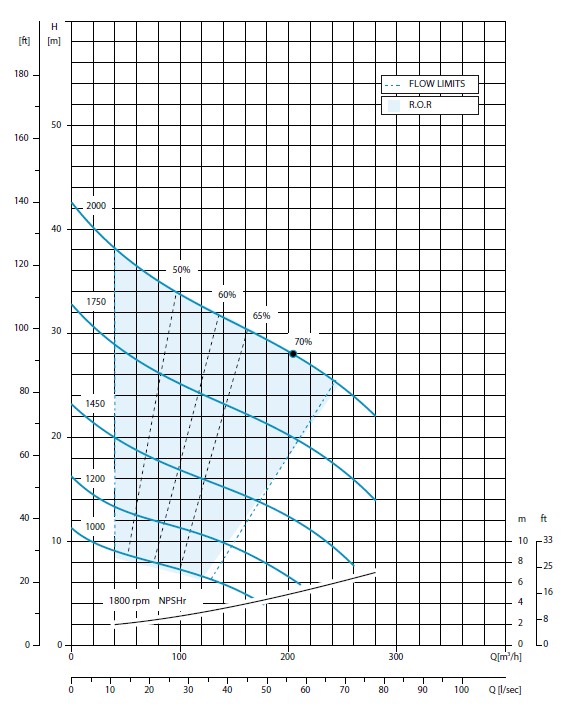

Performance Specs
- Max Flow: 260 m³/h (72 L/sec)
- Max Head: 42 m
- Max Suction Lift: 7.5 m
- Solids Handling: 76 mm
- Pump Efficiency: Up to 70%
- Suction: 100 mm Table E Flanged (AS 2129)
- Discharge: 100 mm Table E Flanged (AS 2129)
Technical Specs
- Engine: Deutz D2.9 L4 Diesel
- Fuel Tank: 200 L
- Dry Weight: 1,415 kg (Skid)
- Dimensions (L × W × H): 2420 × 1200 × 1680 mm (Skid)
- Starting: Electric (12V)
- Emissions: EPA Tier 3
- Control System: PWK37 Digital Controller
