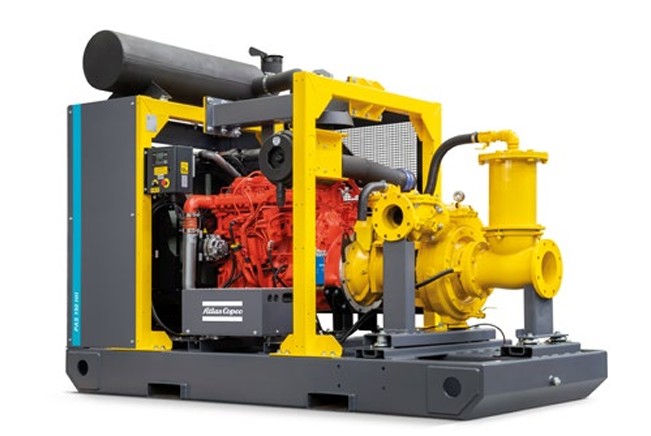

PAC H64
A high-head dewatering pump built for deep excavation and long-distance water transfer, delivering up to 460 m³/h with a maximum head of 153 m.
- High-head vacuum-assisted centrifugal pump delivering up to 460 m³/h (128 L/sec)
- Automatic self-priming up to 7.5 m suction lift
- Delivers an impressive 153 m maximum head for long-distance pumping
- Handles solids up to 76 mm with a heavy-duty closed impeller
- High hydraulic efficiency of up to 69%
- Oil-free diaphragm vacuum pump for reliable dry priming
- Heavy-duty ductile iron construction for abrasive liquids and sandy water
- Mechanical shaft seal in an oil bath for reliable continuous operation
Thanks for your enquiry. We'll be in touch shortly.
Oops! There was an error with your submission.
Ideal for
- Deep excavation dewatering
- Mine dewatering
- Long-distance water transfer
- High-pressure bypass pumping
- Construction and civil infrastructure projects
- Industrial dewatering
- Emergency flood response
Performance Specs
- Max Flow: 460 m³/h (128 L/sec)
- Max Head: 153 m
- Max Suction Lift: 7.5 m
- Solids Handling: 76 mm
- Pump Efficiency: Up to 69%
- Suction: 6" Flanged
- Discharge: 4" Flanged
Technical Specs
- Engine: Scania DC09 074A Turbo Diesel
- Fuel Tank: 420 L
- Dimensions (L × W × H): 3250 × 1940 × 2155 mm
- Starting: Electric (24V)
- Emissions: EPA Tier 2
- Control System: PW500 Digital Controller
- Priming System: Oil-free diaphragm vacuum pump
