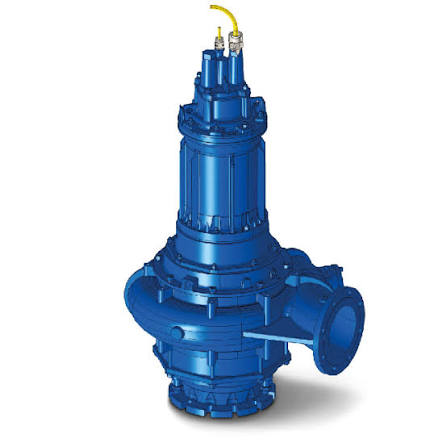

Hidrostal Submersible Wastewater Pump
13 kW high-efficiency submersible motor
Hidrostal D03U hydraulic with SHH impeller
50 mm free solids passage
Duplex stainless steel impeller for superior wear resistance
Hidrohard wear liner for extended service life
Double mechanical seal arrangement with silicon carbide seal faces
IP68 motor enclosure for continuous submerged operation
Integrated thermistor motor protection
Conductivity probe for seal monitoring
Direct-on-line starting
25 m heavy-duty screened power cable
Vertical installation design
Municipal wastewater pumping
Sewage lift stations
Industrial wastewater
Trade waste applications
Sludge transfer
Stormwater pumping
Wastewater treatment plants
Continuous duty pumping installations

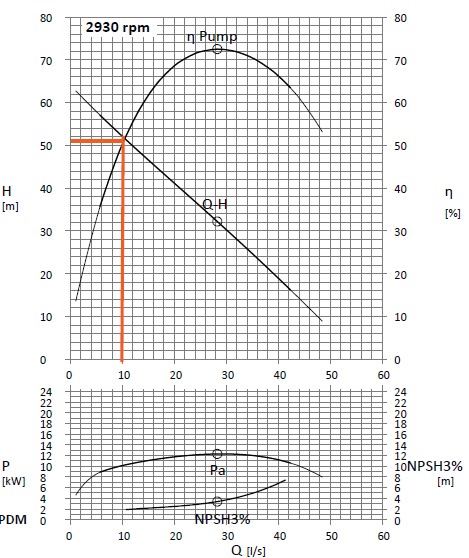

Maximum Flow: 50 L/s
Maximum Head: 52 m
Motor Power: 13 kW
Operating Speed: 2930 rpm
Free Solids Passage: 50 mm
Pump Efficiency: Up to 73%
Motor Type: Immersible Motor
Power Supply: 415 V / 50 Hz
Rated Power: 13.0 kW
Rated Current: 23.7 A
Power Factor: 0.89
Wear Liner: Hidrohard
Shaft Material: Stainless Steel (1.4021)
Mechanical Seals: Double Silicon Carbide Mechanical Seals
Installation: Vertical
